| Specification |
|
- Interface:
- Ethernet port (RJ-45, 10/100 base-T)
- 1-LAN port, for connecting to switch
- 1-PC port for connecting to PC
- 10/100 based Switch
- PoE (IEEE 802.3af ) at LAN port : LP389A, LP389SA only
- Earphone/Microphone Jack (3.5mm) for Headset: LP389S, LP389SA DO Not
Support
- Handset Jack (RJ-10)
- DC 12V power input Jack

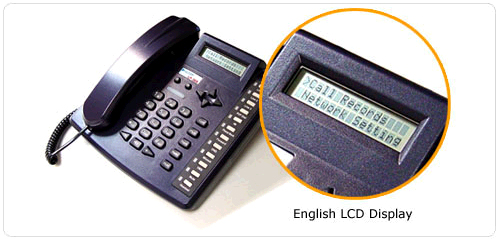

- LCD Display:
- Display Format: 16 Characters (W) x 2 lines(H)
- View Size: 64(W) x 17.9 (H) mm
- LCD Type: TN
- Language Option: English and Chinese
- IP Network connection
- IPv4 (RFC 791), IPV6(RFC 2460)
- IPv6 Auto Configuration (RFC 4862)
- MAC Address (IEEE 802.3)
- Static IP
- DHCP Client (RFC 2131)
- PPPoE
- DNS Client
- TCP/UDP (RFC 793/768)
- RTP/RTCP (RFC 1889/1890)
- IPV4 ICMP (RFC 792), IPV6 ICMP(RFC 4443)
- TFTP Client
- VoIP VLAN Support (802.1Q/802.1P)
- HTTP/HTTPS Server
- QoS Support
- Support IPV4 only, IPV6 only or dual stack mode
- SIP Protocol :
- RFC3261 compliance
- Support up-to 3 SIP Register Accounts (IPv4 and IPv6 are selectable)
- Support Primary and Backup SIP Proxy
- SIP UDP Protocol
- Support SIP compact Form
- SIP Session Timer (RFC 4028)
- MD5 Digest Authentication
- Reliability of provisional responses PRACK (RFC3262)
- Early/Delay media support
- Offer/answer (RFC3264)
- Message Waiting Indication (RFC3842)
- Event Notification (RFC3265)
- REFER (RFC3515)
- Support DNS SRV to locate SIP Server (RFC 3263)
- Support STUN NAT Traversal
- Support “rport” parameter (RFC 3581)
- Audio Codec :
- G.711 A-law/μ-law, G.723.1 (6.3K/5.3K)
- G.729A, GSM 6.10 (full rate)
- Silence Suppression
- VAD/CNG
- Automatic Gain Control>
- In-band/out of band DTMF (RFC 4733 (RFC 2833)/SIP INFO)
- Adaptive/Configurable Jitter Buffer
- Acoustic Echo Cancellation
- Volume Adjustment
- PREFERENCE:
- Customized Idle Text
- Phone Book
- Intelligent Phone Book Name Dialing
- Clock, Daylight Saving, Call-timer
- Call History of Missed, Received and Dialed
- Dialing Plan
- Digit Manipulation
- Selectable Call Progress Tone
- Support Personal Music Ring
- Support Silence Ring
- Auto Answer Mode
- Support Auto Priority (Auto Switch) Calling
- Support Specified Line Calling
- Call Features :
- Caller ID display or inhibit
- Voice Mail with Indication
- Speed Dialing
- Call Waiting/Switching between Calls
- Call Forward (Busy, Unconditional, No Answer)
- Blocking of Anonymous Call
- Do not disturb
- Call Hold
- Call Mute
- Call Transfer
- Incoming Call Blocking List
- Music-on-hold support (via IPPBX or local)
- Conferencing (3-way conference over phone)
- Multi-parties conference (via IPPBX)
- Distinct Ring between on-net and off-net calls (compatible with SIPPBX6200S,
6200GS and 6200N only), 6200x.
- Call Pickup (via IPPBX)
- Call Park/Retrieve (via IPPBX)
- Voice Broadcasting (via IPPBX)
- Barge-in & Barge-in Allowance List
- Redialing/pre-dialing
- Hot Line
- Support Peer to Peer Dialing
- Support Receiving and Display Instant Message (RFC 3428)
- MANAGEMENT :
- SNTP with Daylight Saving
- Multilanguage Web User Interface
- Administrative Telnet CLI
- 3 Levels of User Access Right with Password protection
- LCD Administration Login
- Provides System Status
- Diagnostics (debug through syslog)
- Configuration Backup/Restore
- Reset to Default
- Dual Firmware Image Backup to avoid crashing
- Support HTTP provision through MAC address
- Environmental :
- Dimension: 200 × 95 × 223 mm (Desktop)
- Weight: 1.17kg (One unit with packing)
- Operating Temp. & Humidity
- Temp.: 0°C~45°C (32°F~113°F)
- Humidity: 10%~90% relative humidity, non-condensing
- Power Adaptor:
- INPUT: AC100V~240V, 50/60Hz
- OUTPUT: DC 12V, 1.0A
- Power Consumption of PoE : 4 Watts
- Approvals:
- Country of origin:
- Packing Accessories
- LP389 IP Phone x 1 pcs
- AC to DC12V Power adaptor x 1 pcs
- CD User Manual
- Warranty
|
|
