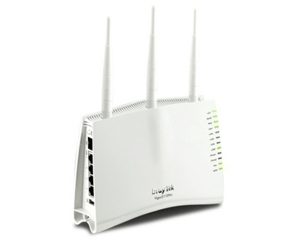

Technical Specifications of Vigor2710n
|
| Hardware Interface |
4 x 10/100M LAN Switch , RJ-45 |
| 1 x ADSL2/2+ Port, RJ-11 |
| 3 x Detachable Antenna |
| 1 x Factory Reset Button |
| 1 x Wireless on/off Button |
| 1 x WPS Button |
| 1 x USB Host 2.0 |
| ADSL Compliant |
ANSI T1.413 Issue 2 |
| ITU-T G.992.1 G.dmt |
| ITU-T G.992.3 ADSL2 G.dmt.bis |
| ITU-T G.992.5 ADSL2+ |
| Annex L (READSL ) |
| Annex M |
| ITU G.997.1 /DPBO Downstream Power Back Off -For German environment |
| ATM Protocol |
RFC2684 MPoA (Multiple Protocol over AAL5) |
| RFC2516 PPPoE (PPP over Ethernet) |
| RFC2364 PPPoA (PPP over AAL5) |
| PPPoE Pass-through from LAN/WLAN |
| Transparent Bridge for MPoA |
Wireless Access Point
(2.4GHZ) |
IEEE802.11n Compliant |
| Wireless Client List |
| Access Point Discovery |
| WDS (Wireless Distribution System) |
| Wireless LAN Isolation |
| Wireless Rate Control |
| 64/128-bit WEP |
| WPA/WPA2 |
| MAC Address Access Control |
| WPS |
| Hidden SSID |
| WMM (Wi-Fi Multimedia) |
VPN
(Specific regional variants only) |
2 Concurrent VPN Tunnels |
| Protocol : PPP, IPSec, L2TP, L2TP over IPSec |
| Encryption : AES, MPPE and DES / 3DES |
| Authentication : MD5, SHA-1 |
| IKE Authentication : Pre-shared Key and Digital Signature (X.509) |
| LAN-to-LAN, Teleworker-to-LAN |
| DHCP over IPSec |
| Dead Peer Detection (DPD) |
| VPN Pass-through |
| Firewall |
Multi-NAT, DMZ Host, Port-Redirection and Open Port |
| Object-based Firewall |
| MAC Address Filter |
| SPI (Stateful Packet Inspection) |
| DoS / DDoS Prevention |
| IP Address Anti-spoofing |
| E-mail Alert and Logging via Syslog |
| Bind IP to MAC Address |
| Time Schedule Control |
| CMS |
IM / P2P Applications Blocking |
| URL Keyword Filter (Whitelist and Blacklist) |
GlobalView Web Content Filter ( Powered by
 ) |
| Bandwidth Management |
QoS
(Specific regional variants only) |
Guarantee Bandwidth for VoIP |
| Class-based Bandwidth Guarantee by User-defined Traffic Categories |
| DiffServ Code Point Classifying |
| 4-level Priority for Each Direction (Inbound/Outbound) |
| Bandwidth Borrowed |
| Bandwidth / Session Limitation |
| Network Feature |
IGMP Proxy / Snooping |
| DHCP Client / Relay / Server |
| Dynamic DNS |
| NTP Client |
| Call Scheduling |
| RADIUS Client |
| DNS Cache / Proxy |
| UPnP |
| Routing Protocol |
Static Routing |
| RIP V2 |
| USB |
3.5G USB Modem as 2nd WAN (Specific regional variants only) |
| Printer Sharing |
File System
(throughput with above 2Mbps) |
Support FAT32/FAT16 File System |
| Support FTP Function for File Sharing |
| Support samba for Windows File Sharing |
| Network Management |
Web-based User Interface (HTTP / HTTPS) |
| Quick Start Wizard |
| CLI (Command Line Interface, Telnet / SSH) |
| Administration Access Control |
| Configuration Backup / Restore |
| Built-in Diagnostic Function |
| Firmware Upgrade via TFTP/FTP/WUI/TR-069 |
| Logging via Syslog |
| SNMP Management MIB-II |
| Management Session Timeout |
| TR-069 |
| 2 Level Managemen |
| Temperature |
Operating : 0?C ~ 45?C |
| Storage : -25?C ~ 70?C |
| Humidity |
10% ~ 90% (non-condensing) |
| Max. Power |
10 Watt |
| Dimension |
L216.4 * W147.8 * H53.5 (mm) |
| Power |
DC 12V |
