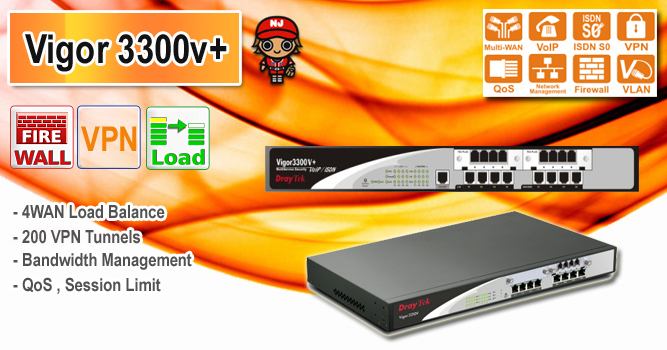

Technical Specifications of Vigor3300V
|
Hardware Interface |
LAN |
4 x 10/100M Base-TX LAN switch, RJ-45 |
WAN/DMZ |
4 x 10/100M Base-TX WAN/DMZ switch, RJ-45 |
VoIP |
2 x slots for FXS/FXO/ISDN S0, TE/ISDN all TE |
Console Port |
1 x console , RJ-45 |
Reset |
1 x factory reset button |
VoIP |
Protocol : SIPv2 (RFC-3261), MGCP, RTP/RTCP |
Multiple SIP proxies registrars |
Jitter buffer (125ms) |
G.168 line each-cancellation |
Automatic gain control |
Packet loss concealment |
Outbound proxy |
FXO-PIN code |
NAT traversal (STUN, RFC-3489) |
Voice codes: G.711 A/? laws, G.723.1, G.726, G.729 A/B, VAD/CNG |
Tone generation and detection : DTMF, dial, busy, ring back, call progress |
DTMF Tone : Out band (RFC-2833),SIP info |
FAX/Modem support |
Tone detection |
G.711 pass-through |
T.38 FAX relay, T.30 transparent |
Modem support rate up V.92 (G.711 only) |
Supplemental services |
Internal call |
Call hold/retrieve |
Call waiting |
Call waiting with caller ID |
Call transfer |
Call forwarding (always, busy, answer) |
Call barring (incomin?g/outgoing) |
DND (do note disturb) |
Hotline |
Incoming call barring |
FXS incoming/outgoing preset number |
Feature phone * |
Dial Plan |
Phone book |
Digit map |
Call barring |
Regional |
Caller ID Support :Bellcore,ETSI, NTT, DTMF-based (nor-europe) |
ISDN |
ISDN failover (Loop through [available on 2 TE/NT (S0) interface module] |
ISDN On-Net/Off-Net |
10 MSN on each ISDN S0 port for VoIP call |
Signaling compliance : ITU-T Rec. Q920, Q921, Q930, Q931 |
Multi WAN |
Outbound policy based load balance |
Allow you local network to access Internet using multiple Internet connections with high-level of Inter?net connectivity availability |
4 dedicated Ethernet WAN ports (10/100Mb/s) |
WAN failover or load balanced connectivity |
Redundancy |
By PC clients |
By WAN interface traffic volume |
By destination IP address range |
By fixed VPN connection |
By fixed VoIP packets |
Robust detection mechanism |
IP aliasing |
Auto-detect line status |
Bandwidth on demand |
WAN Protocol |
Ethernet : PPPoE, PPTP, DHCP Client, Static IP, L2TP, BPA |
ISDN : DSS1 (Euro ISDN), PPP, ML-PPP(64/128Kbps) |
VPN |
Protocols : PPTP, IPSec, L2TP, L2TP over IPSec |
Up to 200 sessions simultaneously |
VPN Trunking |
PFS (DH Group) |
Prevent Replay Attack |
VPN throughput |
NAT-traversal (NAT-T) |
PKI Certificate |
IKE authentication |
Authentication |
Encryption |
RADIUS Client |
DHCP over IPSec |
Dead Peer Detection (DPD) |
Smart VPN software utility |
Easy of adoption |
Industrial-standard interoperability |
Firmware |
Stateful Packet Inspection (SPI) |
Multi-NAT |
Port redirection |
Open ports |
DMZ host |
Policy-based IP packet filter |
DoS/DDoS prevention |
IP address anti-spoofing |
Object-based firewall |
Notification |
Bind IP to MAC address |
WDS security |
Content filter |
URL keyword blocking |
Web content filter |
Time schedule control |
Bandwidth management |
Traffic shaping |
Bandwidth reservation |
DiffServ codepoint classifying |
4 priority levels (inbound/outbound) |
Individual IP bandwidth/session limitation |
Bandwidth borrowing |
user-defined class-based rules |
System management |
Web-based user interface (HTTP) |
DrayTek's Quick Start Wizard |
User administration |
CLI (Command Line Interface,Telnet/SSH) |
DHCP client/relay/server |
Dynamic DNS |
Administration access control |
Configuration backup/restore |
Built-in diagnostic function |
NTP client.call scheduling |
Tag-based VLAN (802.1Q) |
Firmware upgrade via TFTP/HTTP |
Remote maintenance |
Logging via syslog |
SNMP management |
SNMP v2 |
MIB II |
Routing function |
Router |
Advanced routing and forwarding |
DNS |
DHCP |
NTP |
Policy-based routing |
Dynamic routing |
Static routing |
Working with VigorCSM |
Basic Configuration |
Performance monitoring |
Topology |
Security |
Log |
Alarm |
Polling |
VPN/firewall configuration |
VoIP configuration |
Alarm for VPN/firewall |
Support |
2-year limited warranty |
Free firmware upgrade from Internet |
Declaration of Conformity |
|
|
Max. Power |
52 Watt |
Dimension |
L443 * W297 * H44 (mm) |
Power |
90 ~ 260 VAC |
