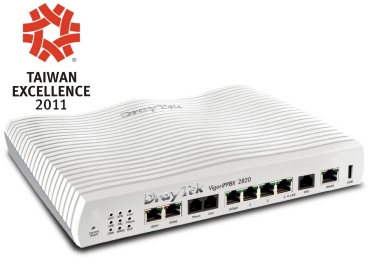

Technical Specifications of VigorIPPBX 2820
|
| Hardware Interface |
1 x 1000Base-TX and 3 x 100Base-TX LAN switch, RJ-45 |
| 1 x ADSL2/2+ port |
| 1 x Phone, RJ-11 |
| 1 x Line, RJ-11 |
| 1 x 100Base-TX WAN port, RJ-45 |
| 2 x Configurable (NT/TE), RJ-45 |
| 1 x Factory reset button |
| 1 x USB host 2.0 |
| IP PBX Features |
50 account ( extensions ) |
| Registration and authentication |
| BLF ( Busy-lamp Field ) |
| Hunting Group |
| IVR |
| Calendar |
| Dial Plan ( Digit Map ) |
| Session Monitor |
| Call Detail Records |
| DID |
| Extension Privilege Assign |
| PIN Code Control |
| Call Barring, Call Routing, Call Park *, Call Pickup * |
| In/Outbond call through FXO Interface * |
| In/Outbond call through ISDN-TE Interface |
| User-defined Prompts |
| Automated Attendant |
| Voice message to Email |
| Voice Mail |
| MWI ( Message Waiting Indicator ) |
| Music on Hold |
| VoIP |
Protocol : SIP, RTP/ RTCP |
| 6 SIP registrars |
| G.168 line echo-cancellation |
| Automatic gain control |
| Jitter buffer ( 180ms) |
| Voice codec : G.711, G.723.1, G.726, G.729, VAD/CNG, iLBC * |
| DTMF tone : Inband / Outband ( RFC-2833 )/ SIP Info |
| FAX/ Modem support : Tone detection / G.711 pass-through / T.38 for FAX * |
| ISDN |
Two configurable ISDN NT/TE |
| Euro ISDN Compatible |
| Automatic ISDN Backup ( Port2 Only) |
| Support 64/128Kbps (multilink-PPP) / BoD (Bandwidth on Demand) |
| On-Net/ Off-Net |
| Remote Dial-in / LAN-to-LAN Connection |
| Remote Activation |
| ADSL Compatibility |
ANSI T1.413 issue2 |
| ITU-T G.992.1 G.dmt |
| ITU-T G.992.2 G.lite |
| ITU-T G.992.3 ADSL G.dmt.bis |
| ITU-T G.992.5 ADSL2+ |
| Annex L ( READSL ) |
| Annex M |
| Multi-PVC |
| ADSL WAN Protocols |
RFC-2684 / RFC-1483 multiple protocol over AAL5 |
| RFC-2516 PPP over Ethernet |
| RFC-2364 PPP over AAL5 |
| PPPoE Pass Through LAN / WLAN |
| PPPoE / PPPoA Relay |
| Transparent Bridge for MPoA |
| Dual WAN ( Ethernet / 3.5G ) |
Outbound policy-based load-balance |
| BoD ( Bandwidth on Demand ) |
| WAN connection failover |
| Ethernet WAN Protocol |
DHCP Client |
| Static IP |
| PPPoE |
| PPTP |
| L2TP * |
| VPN |
Up to 32 VPN tunnels |
| Protocol : PPTP, IPSec, L2TP, L2TP over IPSec |
| Encryption : MPPE and Hardware-based AES/DES/3DES |
| Authentication : Hardware-based MD5, SHA-1 |
| IKE Authentication : Pre-shared key and digital signature ( X.509 ) |
| LAN-to-LAN, Teleworker-to-LAN |
| DHCP over IPSec |
| NAT-traversal ( NAT-T ) |
| Dead Peer Detection ( DPD ) |
| VPN pass-through |
| Firewall |
CSM ( Content Security Management ) for IM / P2P application and URL / Web content filter |
| Multi-NAT / DMZ host / Port-redirection / Open port |
| Object-based firewall |
| SPI ( Stateful Packet Inspection ) ( Flow Track ) |
| DoS / DDoS prevention |
| IP address Anti-spoofing |
| E-mail alert and logging via syslog |
| Bind IP to MAC |
| Network Feature |
Port-based VLAN |
| DHCP client / Relay / Server |
| IGMP proxy |
| Dynamic DNS |
| NTP client |
| Call scheduling |
| RADIUS client |
| DNS Cache / Proxy |
| UPnP |
| Routing Protocol |
Static routing |
| RIP V2 |
| USB |
3.5G USB modem as 2nd WAN |
| Printer sharing |
File system
(throughput with above 2Mbps) |
Support FAT32 / FAT16 file system |
| Support FTP function for file sharing * |
| Support Samba for Windows file sharing * |
| Bandwidth Management |
QoS |
Class-based bandwidth guarantee by user-defined traffic categories |
| DiffServ code point classifying |
| 4-level priority for each direction ( Inbound / Outbound ) |
| Bandwidth borrowed |
| Bandwidth / Session limitation |
| Network Management |
Web-based user interface ( HTTP / HTTPS ) |
| Quick start wizard |
| CLI ( Command Line Interface , Telnet / SSH ) |
| Administration access control |
| Configuration backup / restore |
| Built-in diagnostic function |
| Firmware upgrade via TFTP / FTP / HTTP / TR-069 |
| Logging via syslog |
| SNMP management MIB-II |
| TR-069 management |
| TR-104 management |
| Temperature |
Operating : 0°C ~ 45°C |
| Storage : -25°C ~ 70°C |
| Humidity |
10% ~ 90% ( non-condensing ) |
| Max. Power |
21W |
| Dimension |
L241 * W165 * H44 ( mm) |
| Power |
12V - 15V |
