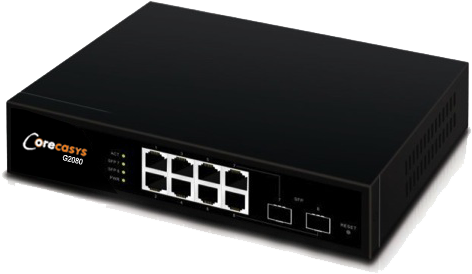

Technical Specifications of Corecasys Switch G2080
|
| Interface |
8 x 10/100/1000Mbps Ports, RJ-45 |
| 2 x SFP Dual-media Ports (Shared with 2 Gigabit Ports) |
| 1 x Console Port |
| 1 x Restart Button |
| Standard Compliance |
IEEE 802.3x Flow Control Capability |
| IEEE 802.1q VLAN |
| IEEE 802.1p QoS |
| Performance |
Switching Capacity |
8 Gigabit Ethernet Ports with Non-blocking Wise Speed Performance |
| 8 K MAC Addresses |
| 144KB On-chip Frame Buffer |
| Supports Jumbo Frame, Up to 8K |
| Broadcast / Multicast Storm Suppression |
| Port Mirroring |
| VLAN |
Port-base VLAN |
| IEEE 802.1q Tag-base VLAN, Up to 256 Active VLANs |
| Q-in-Q is An Efficient Method for Enabling Subscriber Aggregation |
| VSM (Virtual Stacking Management) |
Up to 16 Switches Can be Managed via Single IP |
| Virtual Stacking, No Extra Stacking Hardware and Physical Central Wiring Closet are Needed |
| QoS |
Supports Layer 4 TCP/UDP Port and ToS Classification |
| Supports IEEE 802.1p QoS with Two-Level Priority Queue |
| Supports Priority in a Q-in-Q Tag |
| Bandwidth Control |
Support Bandwidth Rating Per Port Ingress and Egress Rate Limit 1000Mbps with 1Mbps |
| Protocol |
LACP |
Port Trunking with 4 Trunking Groups |
| Up to 8 Ports for Each Group |
| GVRP / GARP |
IEEE 802.1q with GVRP / GARP |
| Multicasting |
Supports IGMP Snooping Including Active and Passive Modes |
| STP / RSTP |
IEEE 802.1d / IEEE 802.1w / IEEE 802.1s |
| Network Security |
IEEE 802.1x Access Control |
| Management Access Policy Control |
| SNMPv1, v2C Network Management |
RFC 1213 MIB (MIB-II) |
Interface MIB |
| Address Translation MIB |
| IP MIB |
| ICMP MIB |
| TCP MIB |
| UDP MIB |
| SNMP MIB |
| RFC 1757 RMON MIB |
Statistics Group 1 |
| History Group 2 |
| Alarm Group 3 |
| Event Group 9 |
| RFC 1493 Bridge MIB |
| RFC 1643 Ethernet MIB |
| Enterprise MIB |
| Operation Voltage |
100-240 V |
| Consumption |
20W |
| Weight |
1Kg |
| Dimensions |
132.7 x 217 x 44 mm |
| Warranty |
2 Year Limited |
|
|
